GOLD HEVC電視機上盒DVB S2 forever twin tuner接收satellite內寘wifi SKS+IKS

内置WIFI/RJ45Wan/Yout*be/IK*、IP*V/Tik tok等网络应用

Chipset GX8028-NH
CPU 32-bit CK610M, Up to 600MHz
GPU multi-standard video decoder
Flash 128M Byte
SDRAM 2Gbit DDR3

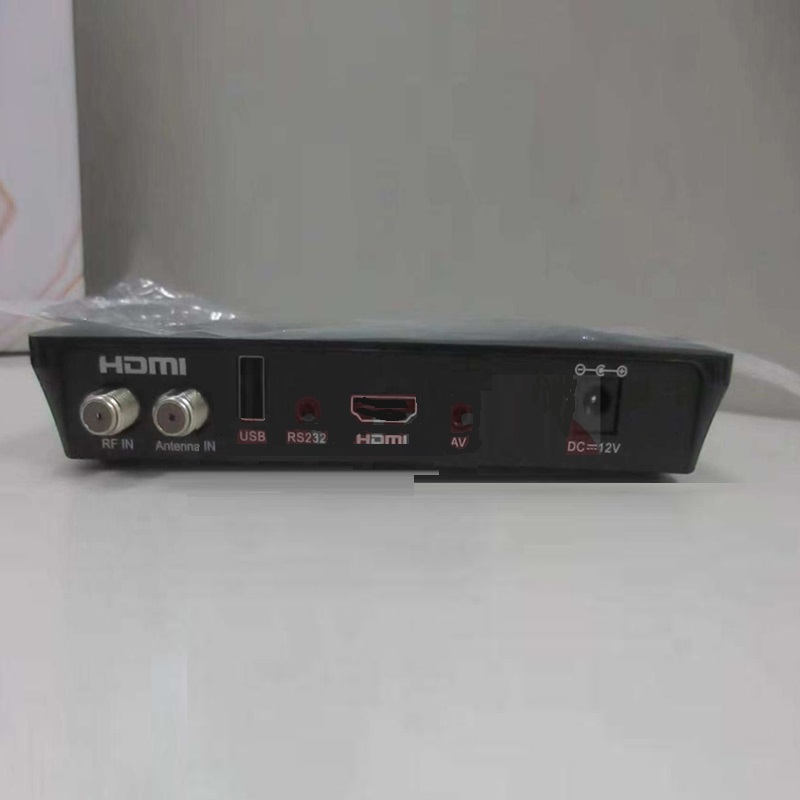

Interfaces
LNB 2*DVB-S2 CAN Tuner In
1 earphone RS232 connector Maximum 115200bps;Support SW Update,Also for Debug
1 earphone AV connector left /right audio channel , compositive video
1 HDMI HD output connector
HDMI output with upscale supporting up to 480p&480i,576p & 576i,
720p&1080i50Hz&1080P50Hz;HDMI 1.4 supports HDCP 1.2 and DDC
1 USB 2.0 Support USB WIFI/3G device
1 DC power input connector 12V 1.5A Standard DC Connector
General
Features
Operation System linux
Power consumption Working power consumption ：Less than 18W;
Storage
USB2.0,High-speed and Full-speed devices supported, PVR is
supported
supported all kind of storage ,recording,playing and connecting all
kind of USB equipment.
video
Video Full Resolution:1920 × 1080P 1920 × 1080i and 1280 × 720p
for HD video,720 × 480p, 720 × 480i, 720 × 576i, and 720 × 576p
for SD video
Standard: HEVC/H.265,ISO/IEC 14496-10,ISO/IEC 14496-2,ISO/IEC
13818-2,ISO/IEC 11172-2
H265 video,BP/MP/HP up to L4.1,H.264 video,SP/ASP up to
L5,MPEG-4 video,H.263 P3,AVS,AVS plus,MPEG-2
video,MP@HL,MPEG-1 video
Aspect Ratio: 4:3, 16:9 Pan & Scan, Letterbox
True full Color(32 bits)on screen display (OSD)
Five display planes: background, still image, video, SOSD and OSD
Audio
Standard: ISO/IEC 13818-3
Decoding: MPEG1 I/II, MP3,MPEG-4 AAC and AAC plus (HE-AACv1
and v2),DRA,Dolby Digital (AC-3),Dolby Digital Plus (DD+)
Sampling Frequency :32, 44.1, 48KHz,and MPEG-2 half sampling
rates of 16kHz,22.05kHz, 24kHz
Audio Output Impedance: Low
Output Mode: Single channel, Dual-channel, Stereo, Left, and
Picture Standard： JRPigGh,tB.MP,GIF,PNG
Storing memory:4000 tp , 8000 channels
network search, blind search, sat search and TP search
HARDWARE DVB Function
Supported programme lock,delete,move(group
favorite gromupo vaen)d,r peanraemneta,sl wloacpk supported
Supported transponder add ,delete,edit
Supported multi-language menue(English.
Franch.Russia.Greek.Italian.Arabic.Farsi,Ukrain,Swedish,Spanish,T
urkish,German etc)
PIP supproted
Easy functions such as Group Move/Recall History
7 days Electronic Program Guide (EPG)[can up to 14 days ],epg
from internet
Teletext output through VBI and OSD
Software(data,kernel and file system) upgrade through USB or
Ethernet
Multi-language DVB Subtitle output
Tuner &
Channel
DVB-S/ S2
DVB-S / DVB-S2 Satellite Compliant (MPEG-I/MPEG-II/ MPEG-IV/
H.263/H.264/H.265)
Input impedance 75Ω
input frequency 950~2150MHz
Symbol rate 2.0~45 MS/s
Tuner RDA5815M
Demodulation QPSK.8PSK,16APSK,32APSK
Device
Parameter
Power dissipation Max 18W
Input voltage ： DC 12V 1.5A
Working Temperature 0 ～ 40℃
Size 160*92*25mm
